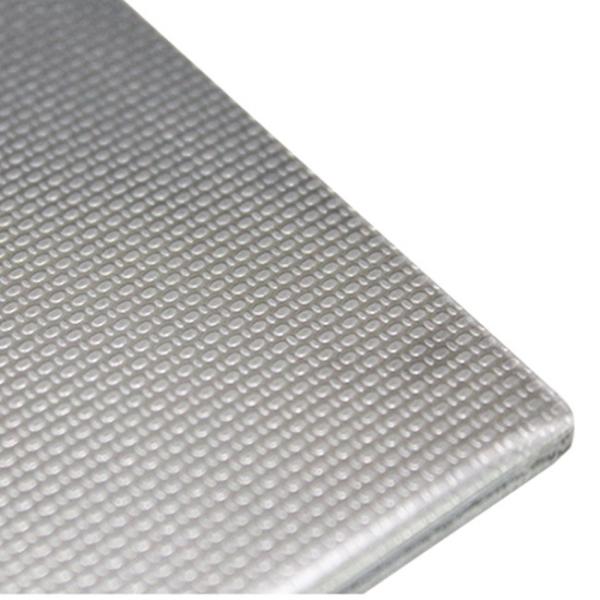

    Metal Composite Panel Stainless Steel Wall Cladding Exterior Brushed Anti Static

    Ask Lasest Price
    Brand Name : jinhengsteel
    Model Number : JHS-20223662255
    Certification : ISO9001
    Price : $35.00 - $65.00/ Square Meter
    Supply Ability : 250000 Square Meter/Square Meters per Year
    • Product Details
    • Company Profile

    Metal Composite Panel Stainless Steel Wall Cladding Exterior Brushed Anti Static

    Exterior wall cladding brushed stainless steel metal composite panel

    Exterior wall cladding brushed stainless steel metal composite panel

    Structure:

    • Protective film to protect panel surface
    • Stainless Steel #304 / #316 sheet
    • Polymeric membrane composites the copper sheet onto core.
    • LDPE/FR core is made from low density polyethylene or fireproof grade materials.Metal Composite Panel Stainless Steel Wall Cladding Exterior Brushed Anti Static

    Width1000mm / 1200mm
    Panel Thickness3mm / 4mm
    Stainless AlloyStainless Steel #304 / #316
    Stainless Steel Thickness0.3 / 0.4 / 0.5mm
    Skin FinishDull / Mirror/ Hairline / Embossed
    CoreLDPE / Fireproof / A2 non-combustible
    Length≥4000mm
    Brand / OEMALCADEX® / Customized
    Payment TermsT/T / L/C / Western Union / Paypal
    PackingWooden Package or bulk loading

    Specification:


    Characteristics

    Characteristics for Stainless Steel Composite Panel (SSCP)

    Test Item


    Unit


    National Standard for SSCP
    3(4)mm/0.3+0.3mm3(4)mm/0.2+0.2mm
    1800 Peel Off StrengthN/mm≥5.4≥6.0
    Unit WeightKg/m27.0±0.5 (8.0±0.5)5.6±0.5 (6.5±0.5)
    Flexural StrengthMPa≥130≥135
    Flexural Modulus104MPa≥4.5≥4.4
    Penetrating ResistancekN≥23≥18
    Shear StrengthMPa≥72≥80
    Thermal Deformation Tept.0C≥110≥110
    Thermal Expansion/0C≤1.2x10-5≤1.8x10-5
    Boiling-water Resistance-No effectNo effect
    Weather Resistance-No effectNo effect
